Clear channel positioning
Offer a focused two-way set or a fuller three-way package according to the target market.

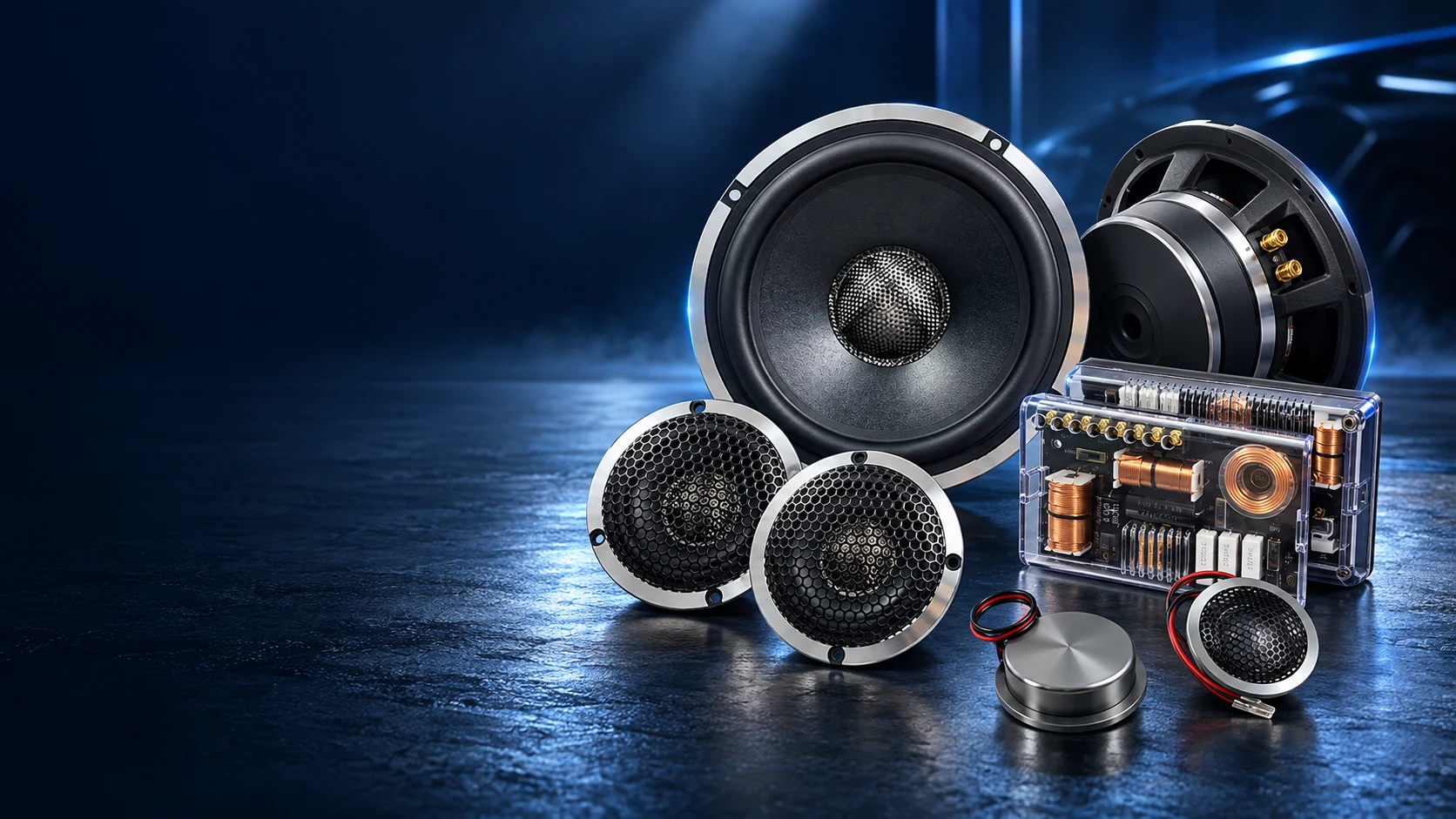

CUSTOM 6.5-INCH COMPONENT SPEAKER PLATFORM
One Platform.
Two Product Paths.
ZM-X65W
Build a two-way or three-way component speaker line around one coordinated black-and-silver product identity.
ONE VISUAL LANGUAGE
A coordinated system built for brand-ready product lines.
Black composite paper cones, silver trim and transparent crossover housings create a consistent family appearance across both configurations.
Consistent product identity
Keep the same visual direction across woofer, midrange, tweeter and crossover groups.
Flexible project discussion
Review configuration, appearance, branding and packaging within one OEM / ODM brief.
2-WAY OR 3-WAY
Choose the configuration that fits your market.
Each option is presented as a separate, complete component group for a clear purchasing decision.

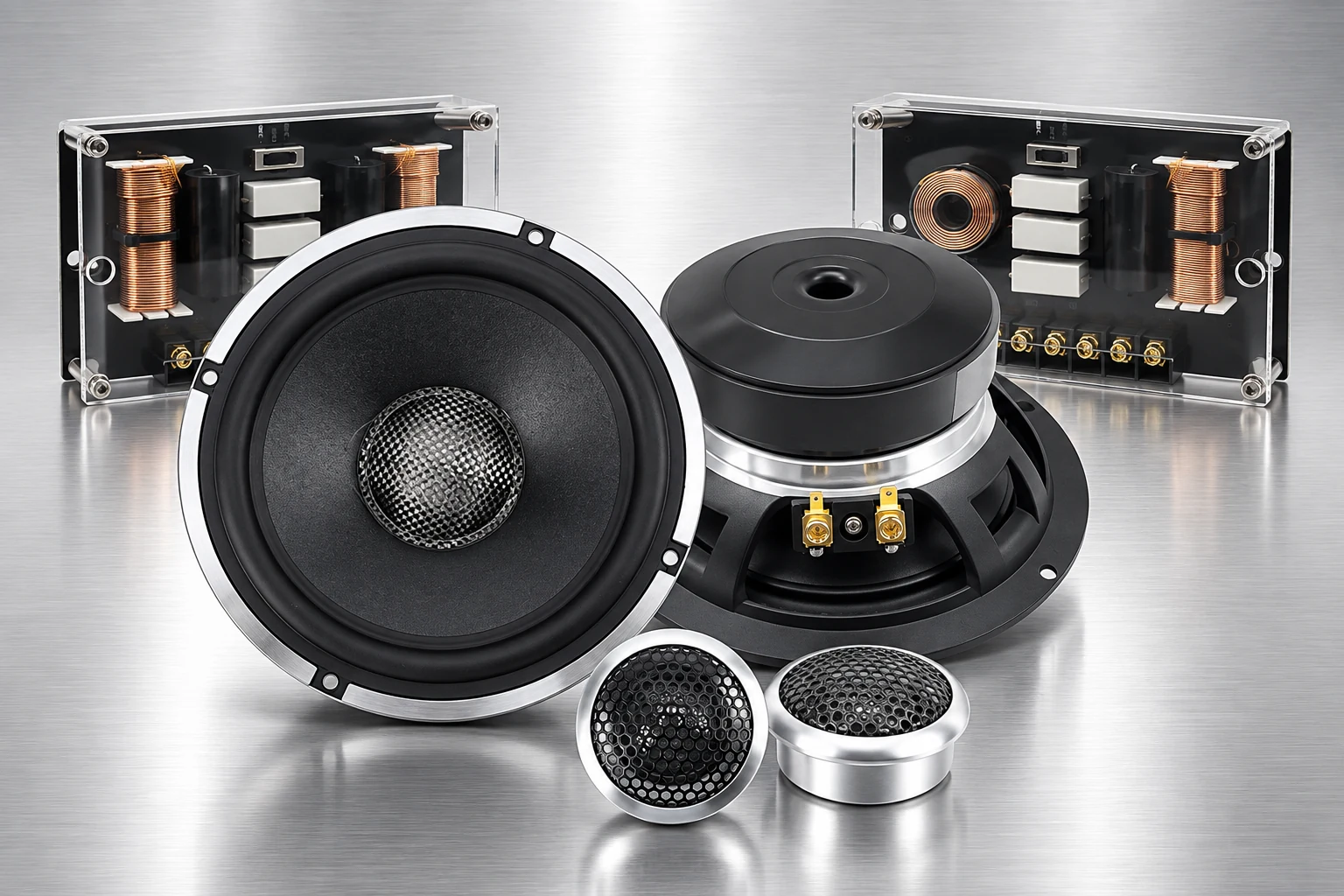

2-WAYZM-X65W-2W
A focused, efficient front-stage system
A practical platform for brands that want a clean two-way component package.
- 6.5-inch woofer pair
- Tweeter pair
- 2-way crossover pair

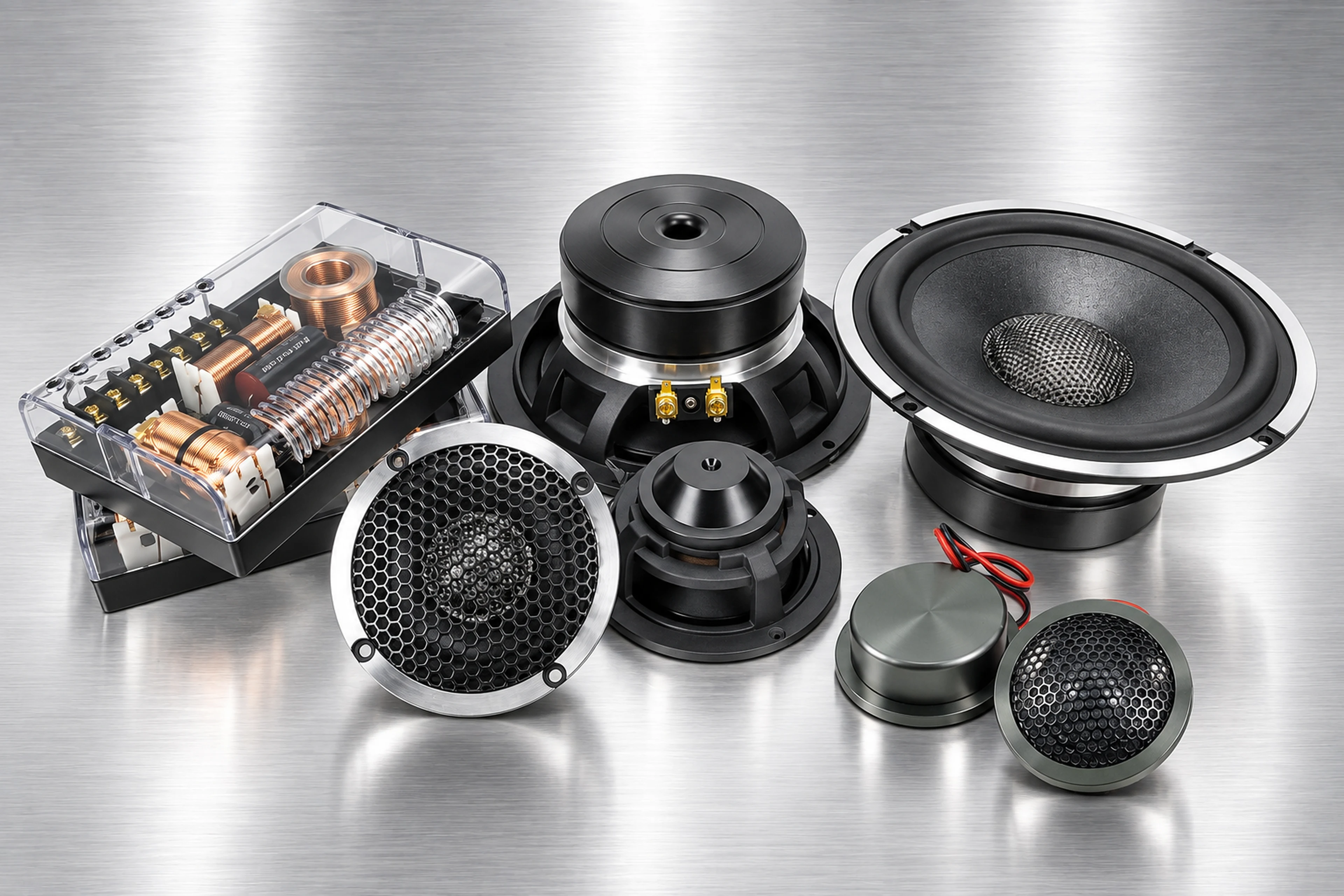

3-WAYZM-X65W-3W
A complete three-way component system
A fuller platform with a dedicated midrange for higher-tier product positioning.
- 6.5-inch woofer pair
- Midrange pair
- Tweeter pair
- 3-way crossover pair

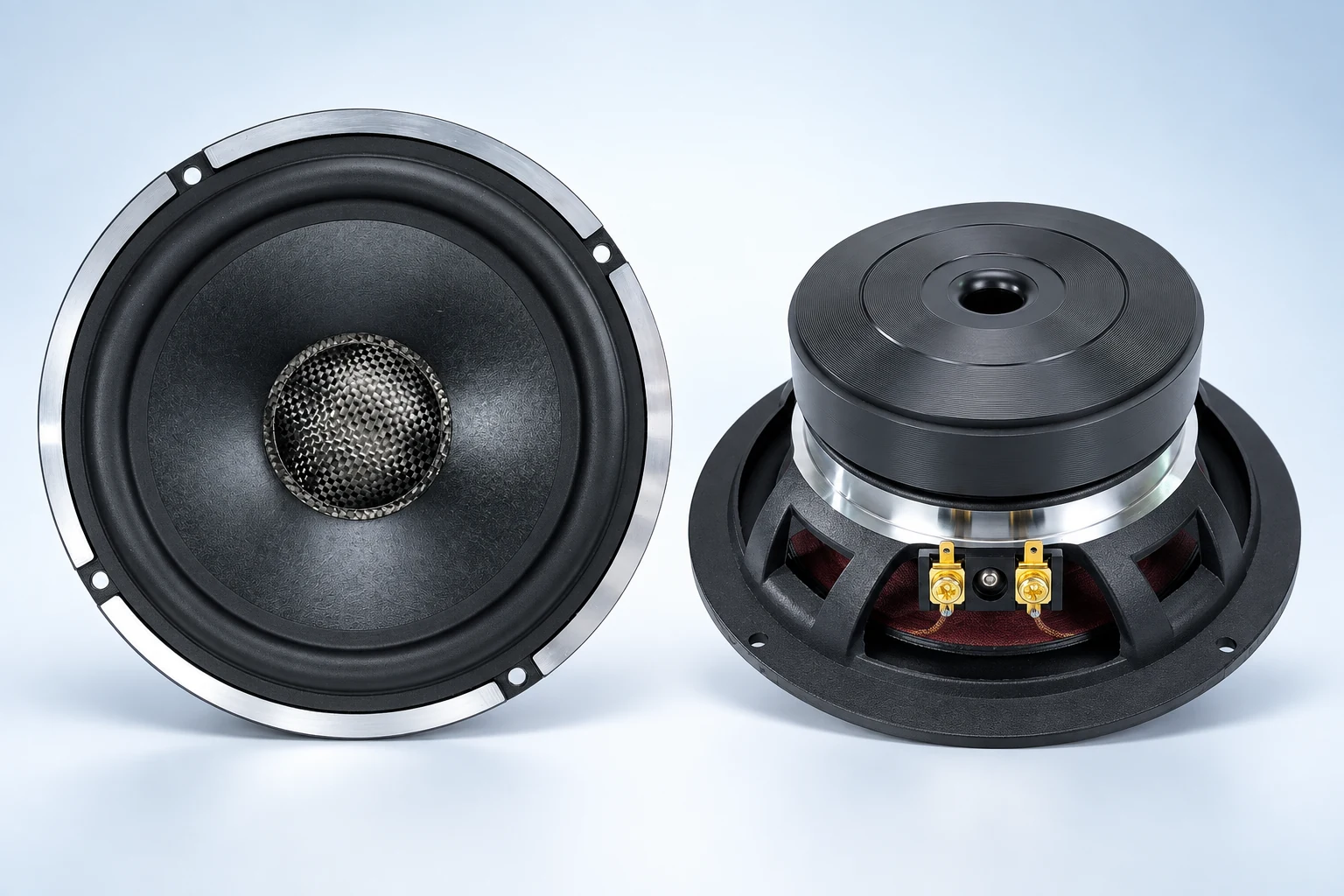

WOOFER · FRONT & REARCORE WOOFER CONSTRUCTION
Designed to look coherent from every angle.
The 6.5-inch woofer combines a black composite paper cone, segmented silver trim and a cast aluminium basket.
Black composite paper coneCoordinated dark finishCast aluminium basketStructured rear profileSilver outer trimConsistent family identity4 Ω nominal impedanceConfirmed platform fact
SYSTEM COMPONENTS
The right component group for each configuration.
Review the dedicated driver and crossover groups before selecting the final platform.

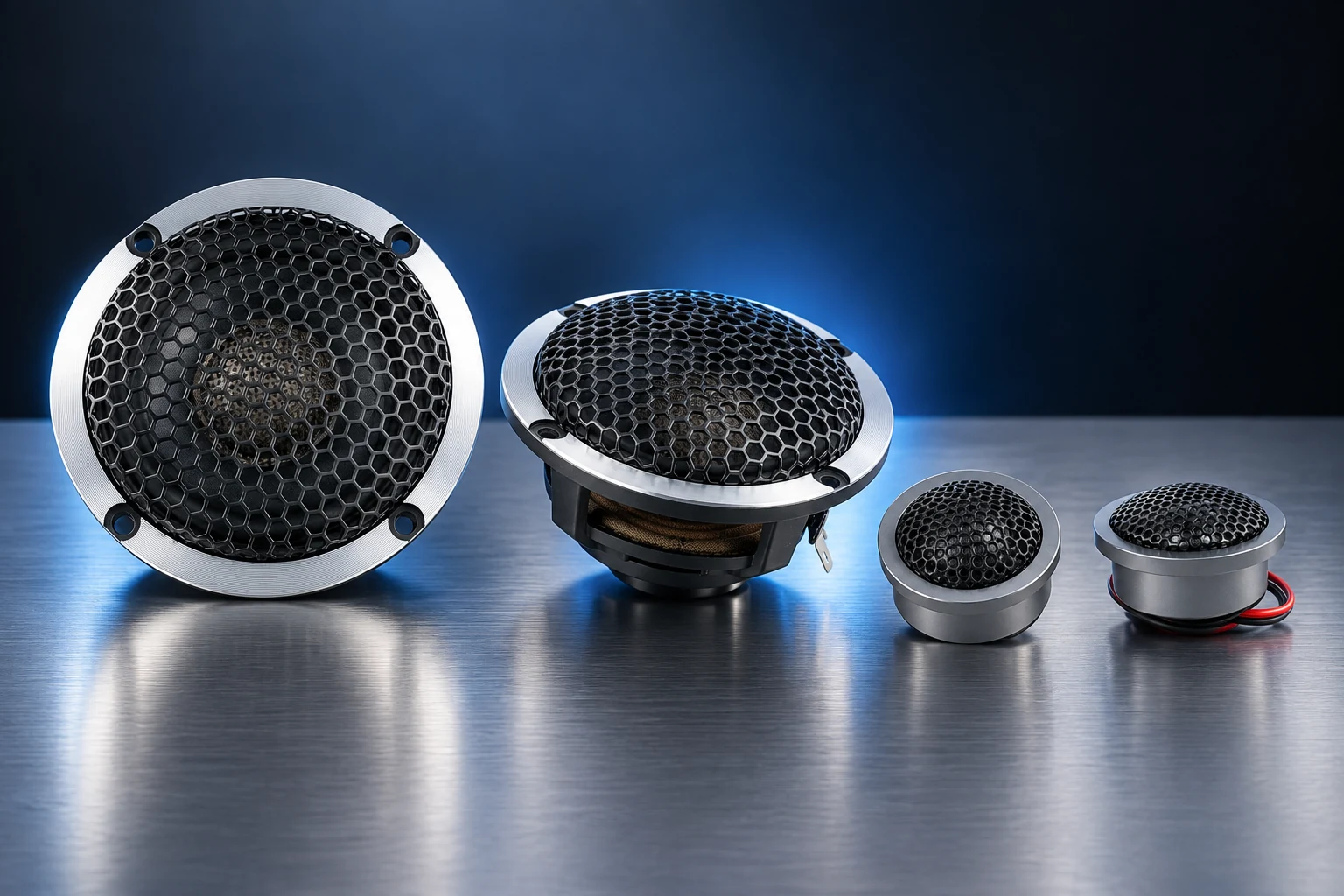

DRIVER GROUP
Midrange & Tweeter
The three-way route adds a dedicated midrange while both configurations retain a coordinated tweeter design.

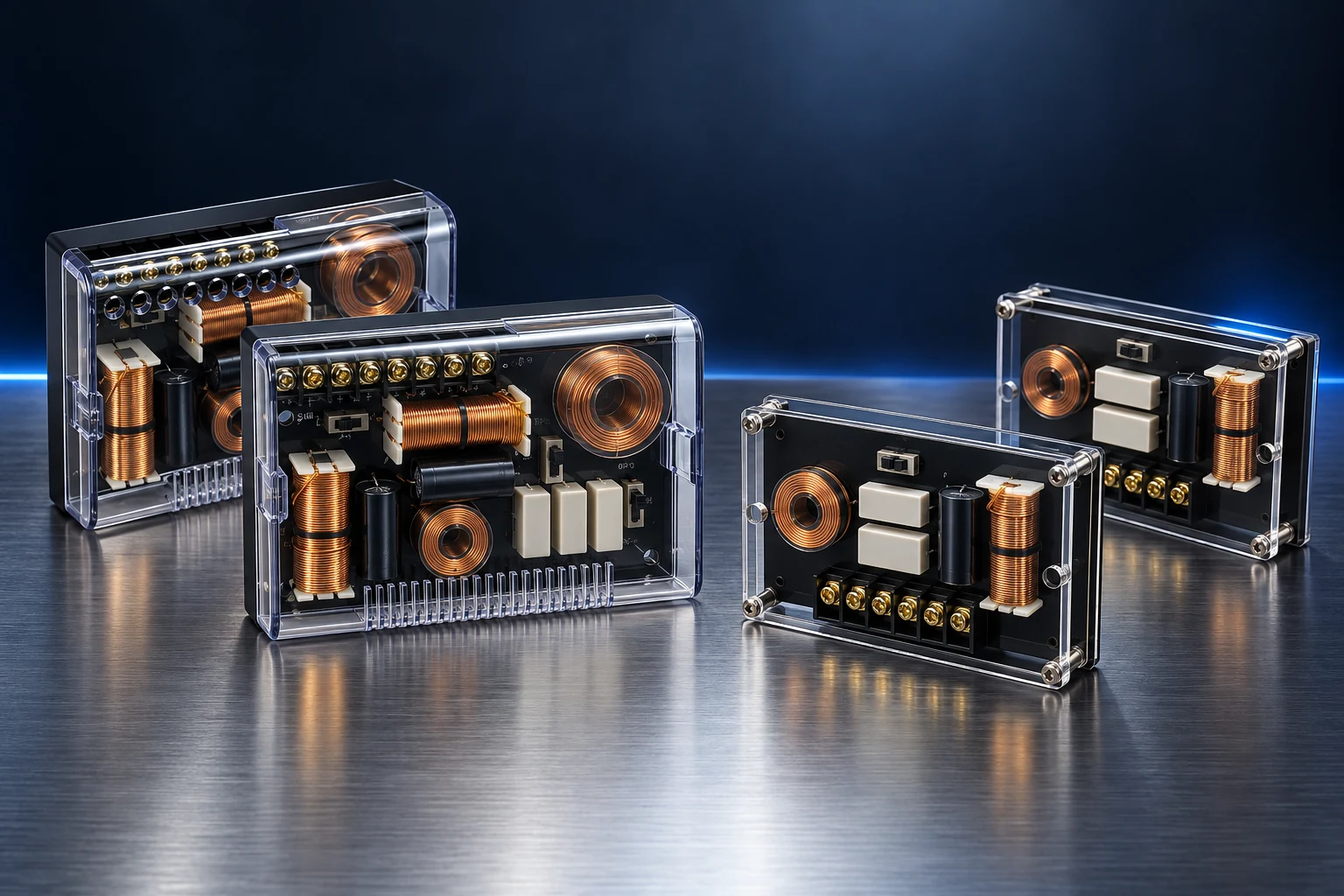

CROSSOVER OPTIONS
Matched System Layouts
Two-way and three-way projects use their corresponding passive crossover layouts.
SEPARATE TECHNICAL DATA
Compare the 2-way and 3-way specifications side by side.
Each configuration has its own component list and power rating. Values below follow the current product catalog and corresponding model manual.
PRODUCT MODEL
ZM-X65W-2W
120 W × 2RMS power
4 ΩImpedance
92 dBSensitivity
System type2-Way component speaker
Woofer6.5-inch composite paper cone
Woofer basketCast aluminium
Tweeter25 mm silk diaphragm / neodymium
MidrangeNot included
RMS / PMPO power120 W × 2 / 240 W × 2
Frequency response43 Hz – 28 kHz
Woofer magnet100 mm Y35 ferrite
Crossover2-Way passive crossover
PRODUCT MODEL
ZM-X65W-3W
150 W × 2RMS power
4 ΩImpedance
92 dBSensitivity
System type3-Way component speaker
Woofer6.5-inch composite paper cone
Woofer basketCast aluminium
Midrange3.5-inch cast aluminium / neodymium
Tweeter25 mm silk diaphragm / neodymium
RMS / PMPO power150 W × 2 / 300 W × 2
Frequency response43 Hz – 28 kHz
Woofer magnet100 mm Y35 ferrite
Crossover3-Way passive crossover
FROM PRODUCT REVIEW TO APPLICATION
A compact path from engineering review to installation.
Use the selected platform as the starting point for product evaluation and project discussion.
ENGINEERING REVIEW
Review the product as a complete system.
Discuss configuration, component grouping and the final project brief.

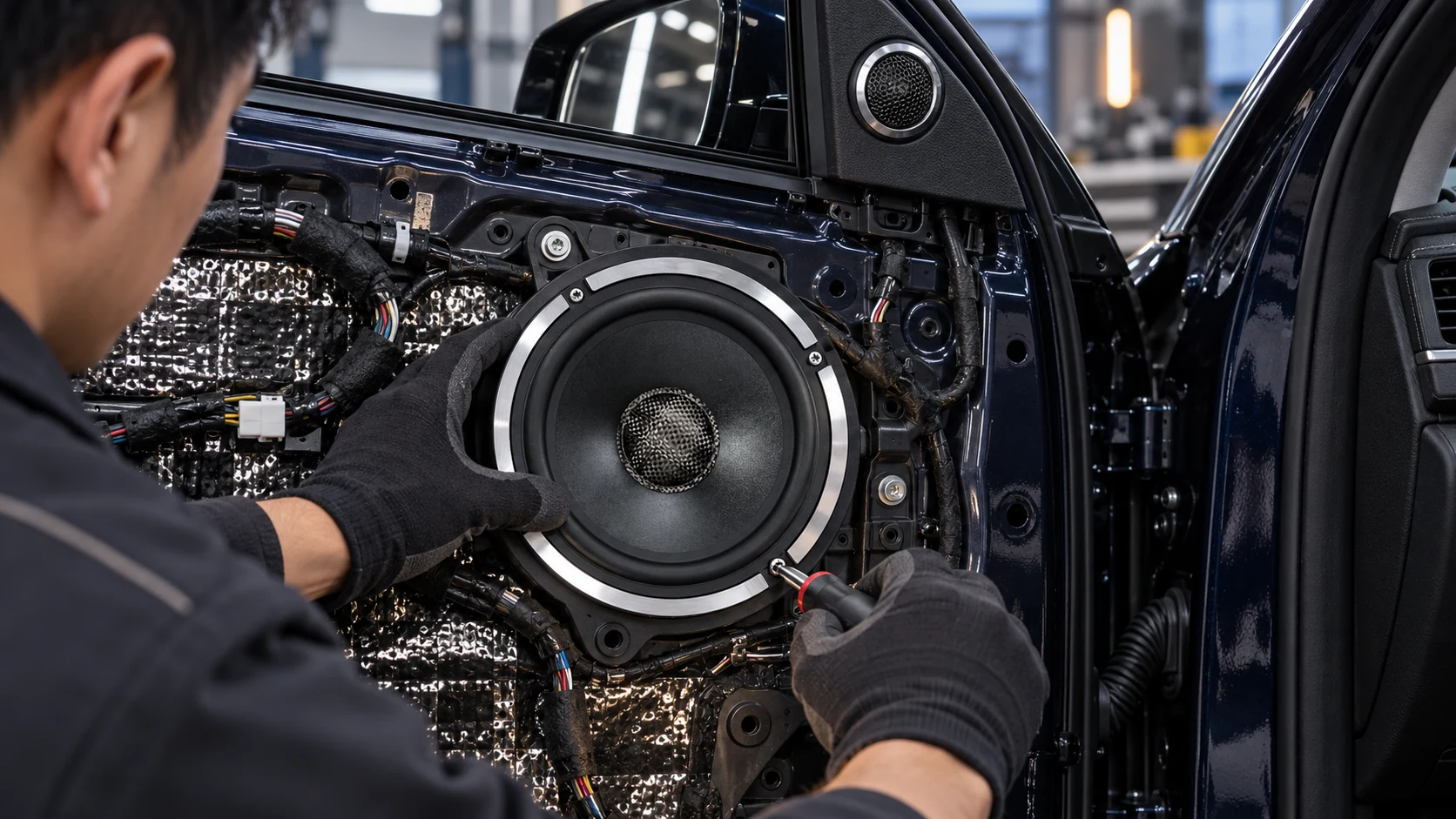

INSTALLATION REFERENCE
Plan the application around the selected platform.
Confirm installation requirements against the intended vehicle and project.

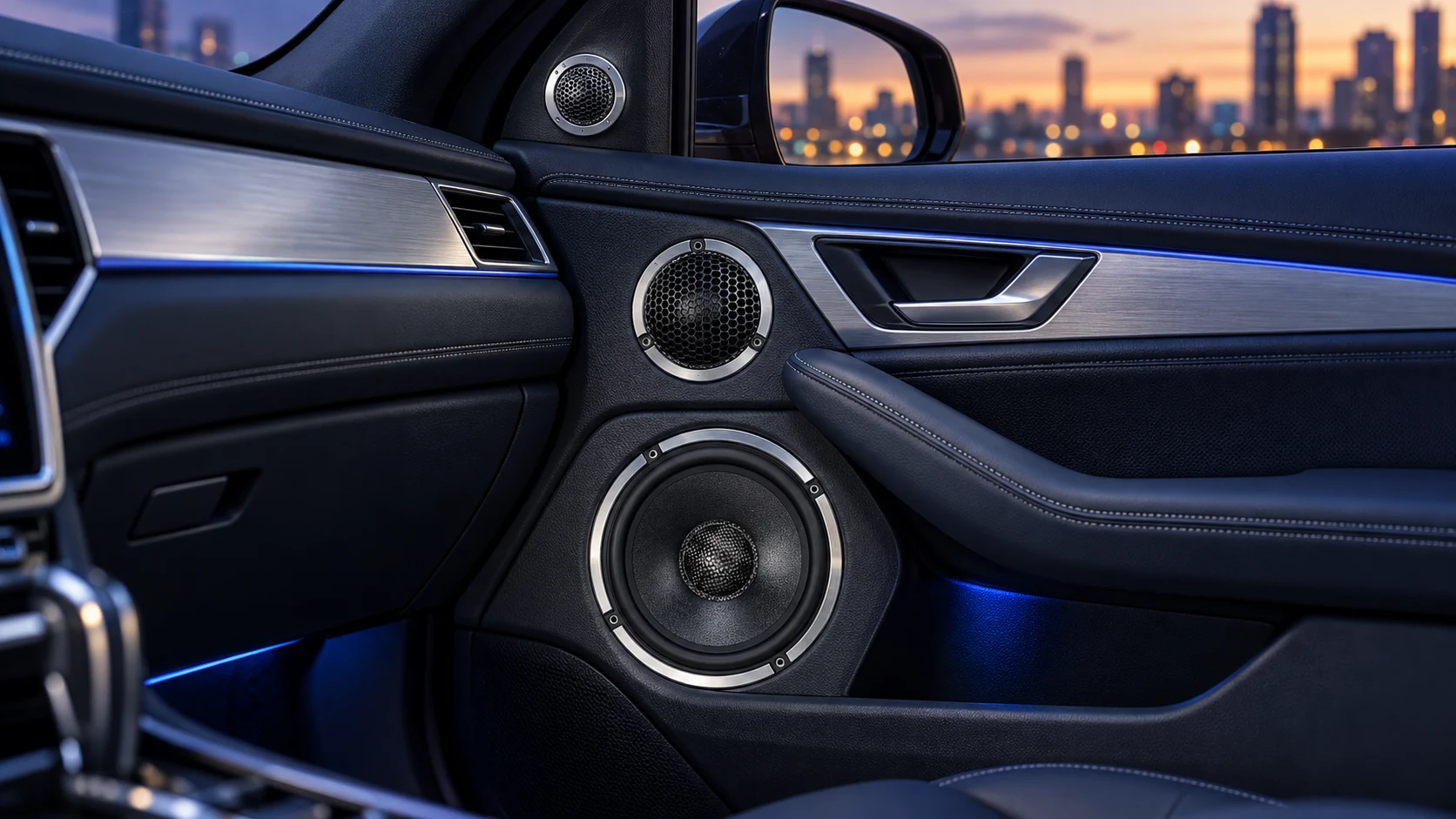

COORDINATED INTERIOR PRESENTATION
Built to support a clean,
premium installation.
Use the component platform to create a visually coherent front-stage system for your product line.
OEM / ODM PROJECT JOURNEY
From product choice to approved project.
A clear process keeps configuration, branding and delivery requirements aligned.
- 01
Define
Market, positioning and target configuration
- 02
Configure
Select the 2-way or 3-way platform
- 03
Customize
Review appearance, branding and packaging
- 04
Sample
Evaluate the approved project sample
- 05
Confirm
Lock the final product requirements
- 06
Deliver
Coordinate production and shipment
B2B BUYER FAQ
Answers for a clearer product brief.
Send your target market, preferred configuration, expected quantity and branding requirements to start the discussion.
Can ZM-X65W be customized as both 2-way and 3-way systems?+
Yes. ZM-X65W is presented as one platform with separate two-way and three-way configurations. Your quotation and approved documents will identify the selected system.
What is included in the two-way configuration?+
The reviewed visual configuration includes a 6.5-inch woofer pair, tweeter pair and passive crossover pair.
What is added in the three-way configuration?+
The reviewed three-way configuration adds a dedicated midrange pair and uses the corresponding three-way passive crossover layout.
Can the product appearance, logo and packaging be customized?+
Available OEM / ODM scope is reviewed against your market, order plan and brand requirements before sampling.
Where do the displayed specifications come from?+
The separate two-way and three-way values are taken from the current ZEMING product catalog and the corresponding ZM-YS-65209 / ZM-YS-65302 product manuals. Final order specifications remain subject to the approved project document.

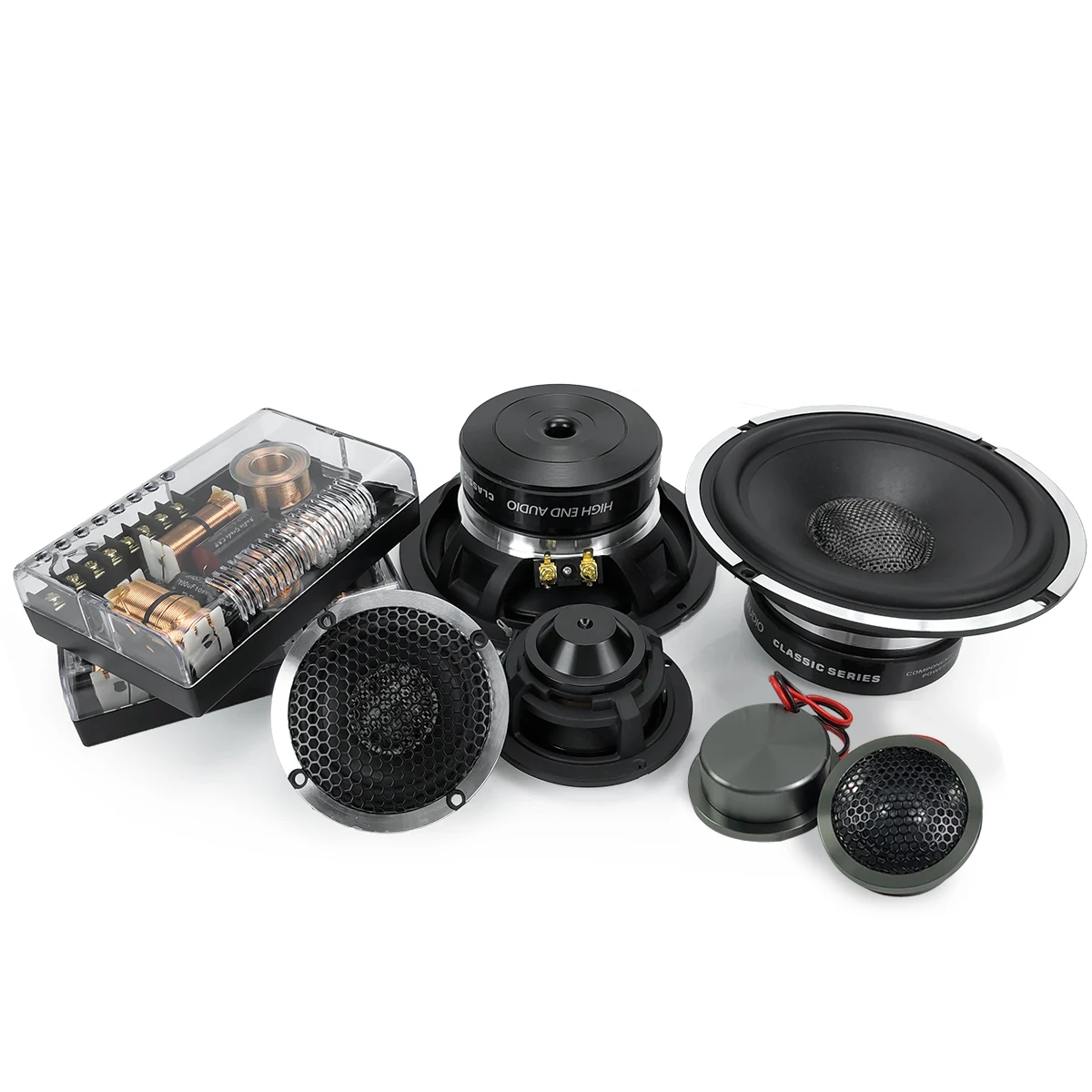

START YOUR ZM-X65W PROJECT
Choose 2-Way or 3-Way.
Build It for Your Market.
Share the configuration, quantity, target market, branding and packaging requirements for project review.
