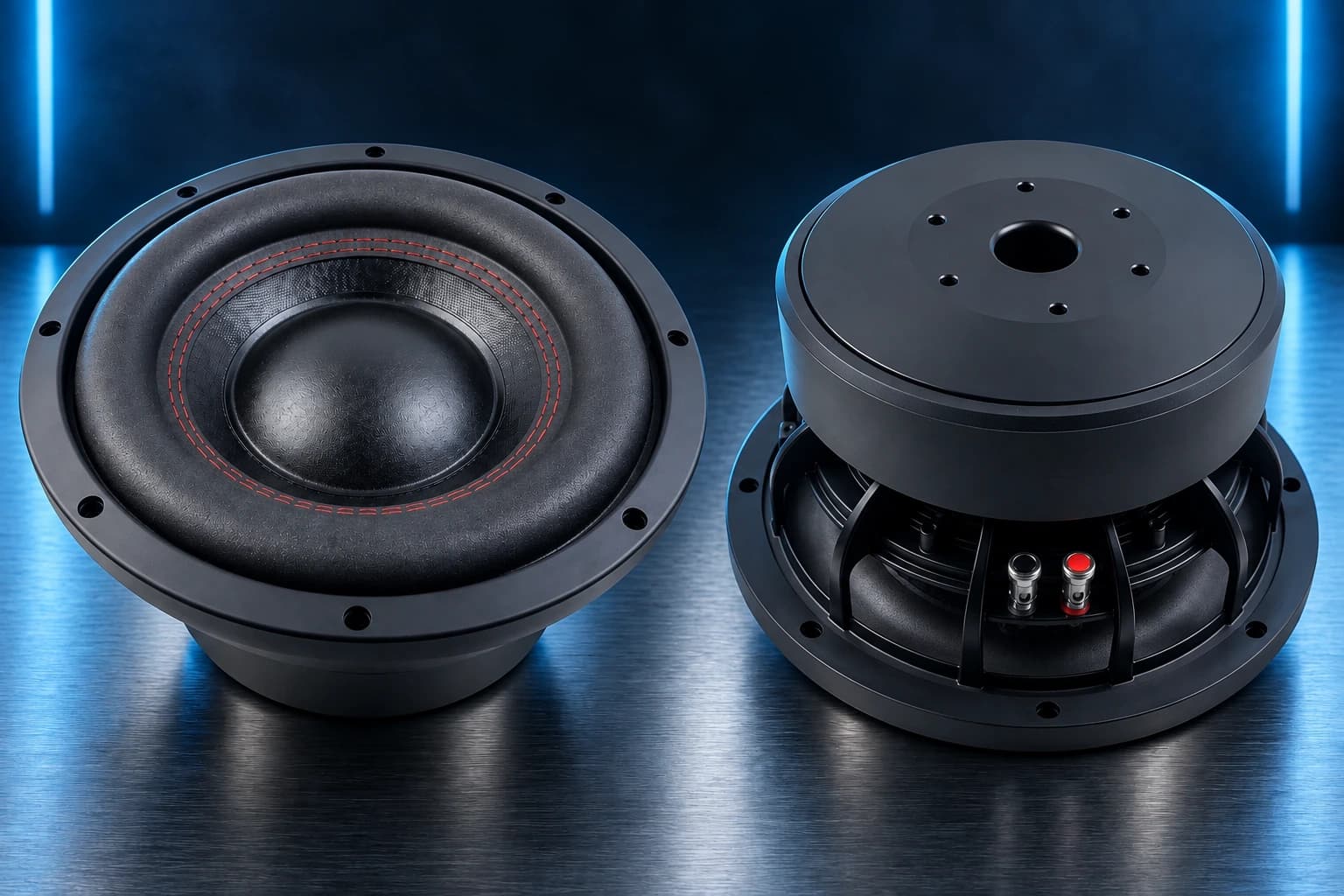

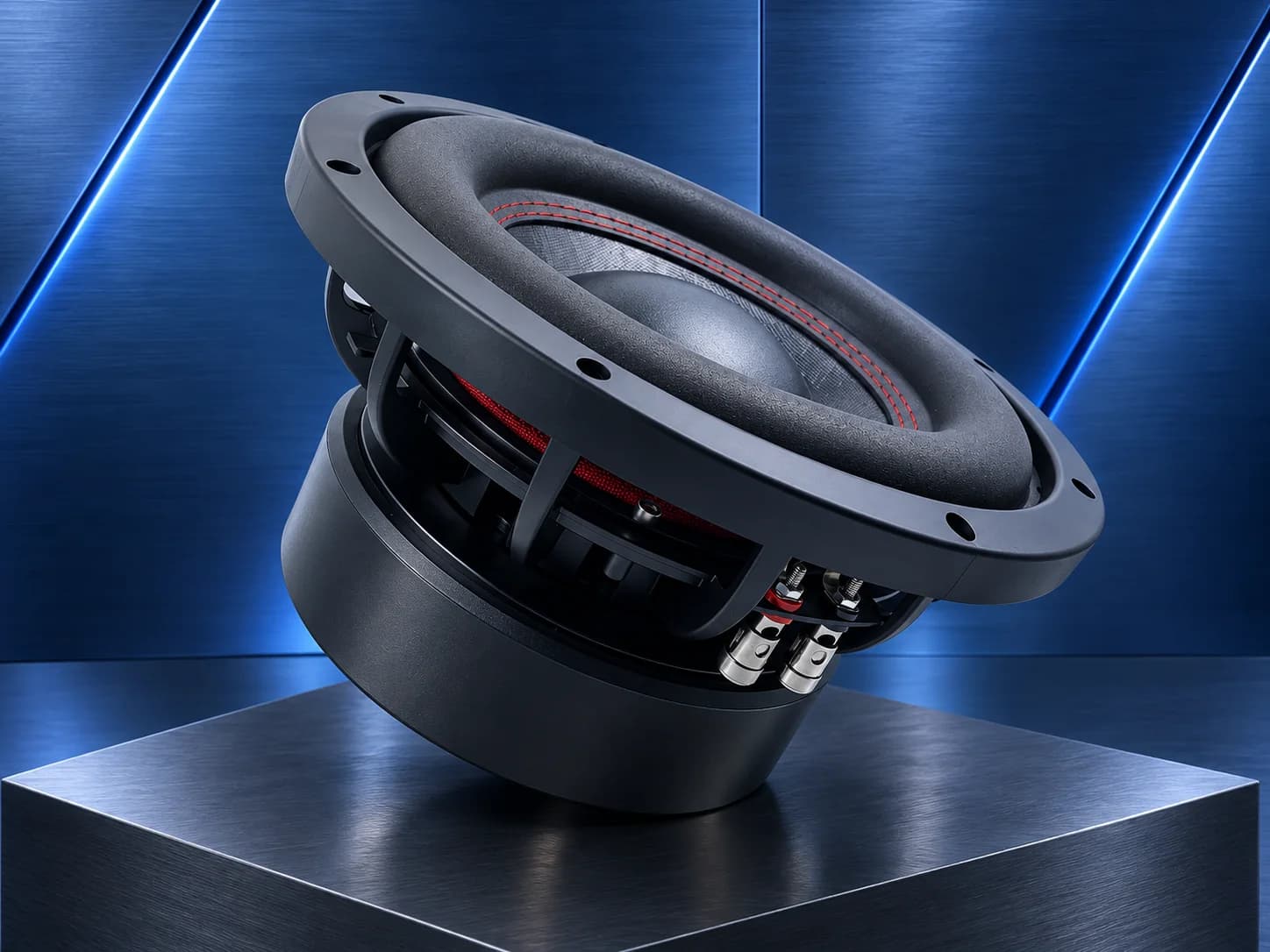

0110 INCH
ZM-CB10P
Passive dual-voice-coil car subwoofer- AES / program
- 1500 W / 3000 W
- Impedance
- 4+4 Ω
- Response
- 40 Hz–1 kHz
- Sensitivity
- 90 dB

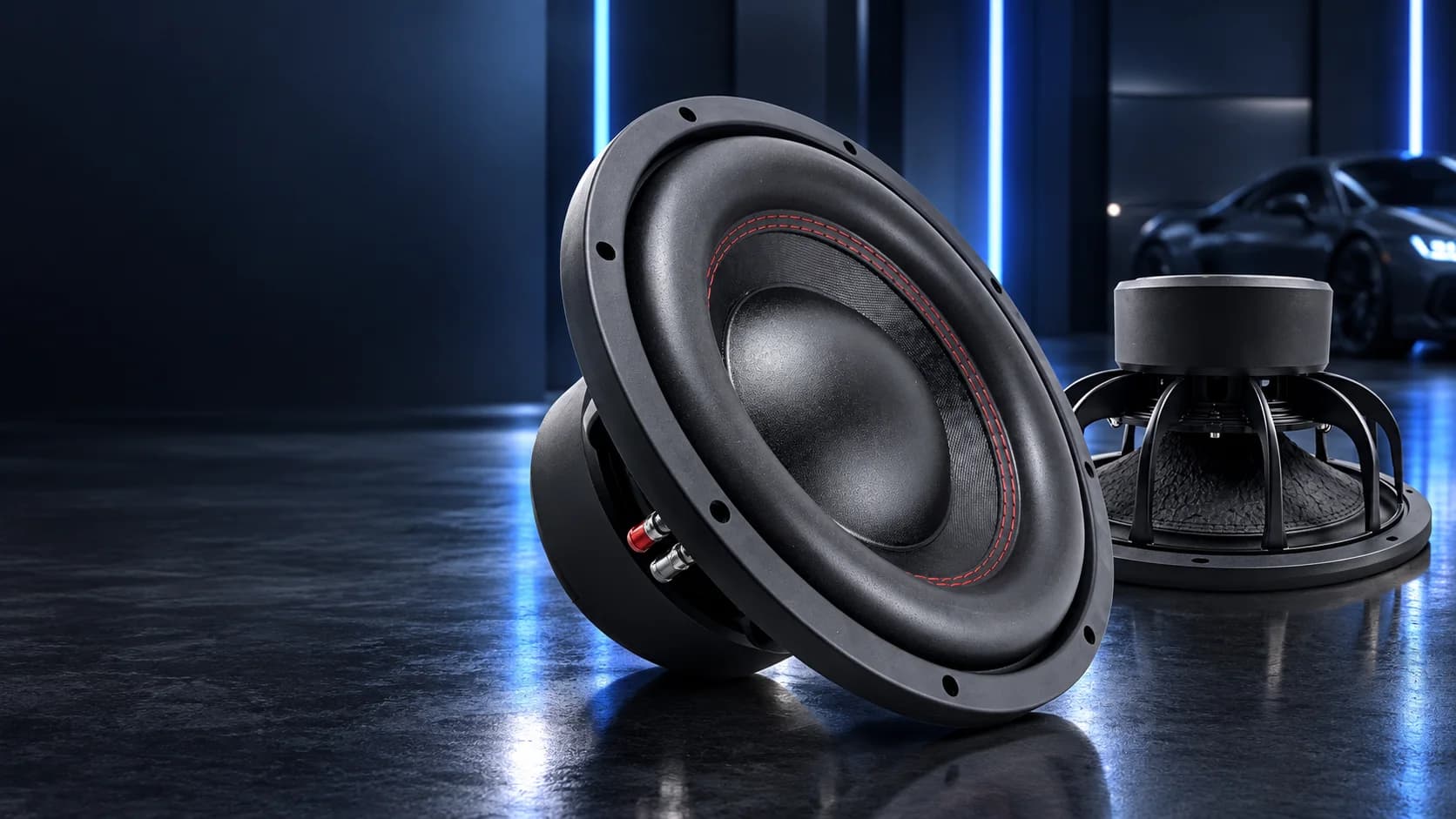

Start an inquiry PRODUCTS / PASSIVE SUBWOOFERS / ZM-CB SERIES
10 / 12 / 15 INCH · OEM / ODM PLATFORM
Build a Serious Bass Product Line.
Three model-specific passive subwoofers for car-audio importers, distributors, wholesalers and private-label brands.
10, 12 and 15 inch rangeModel-specific specificationsOEM / ODM project discussion
PRODUCT RANGE
Choose the Right Size for Your Market.
The three models share a consistent visual direction while keeping their own diameter, power and acoustic reference data.
01

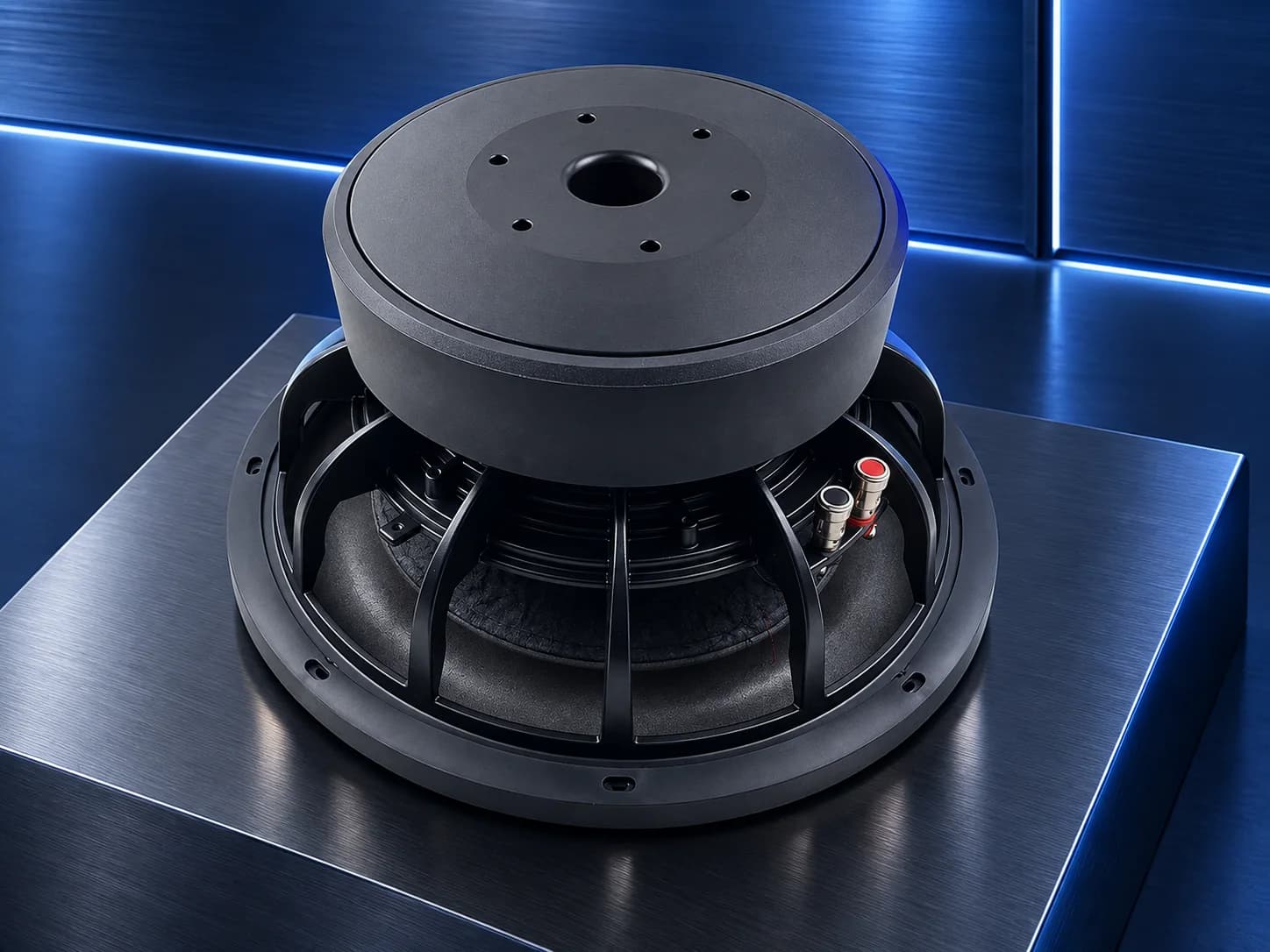

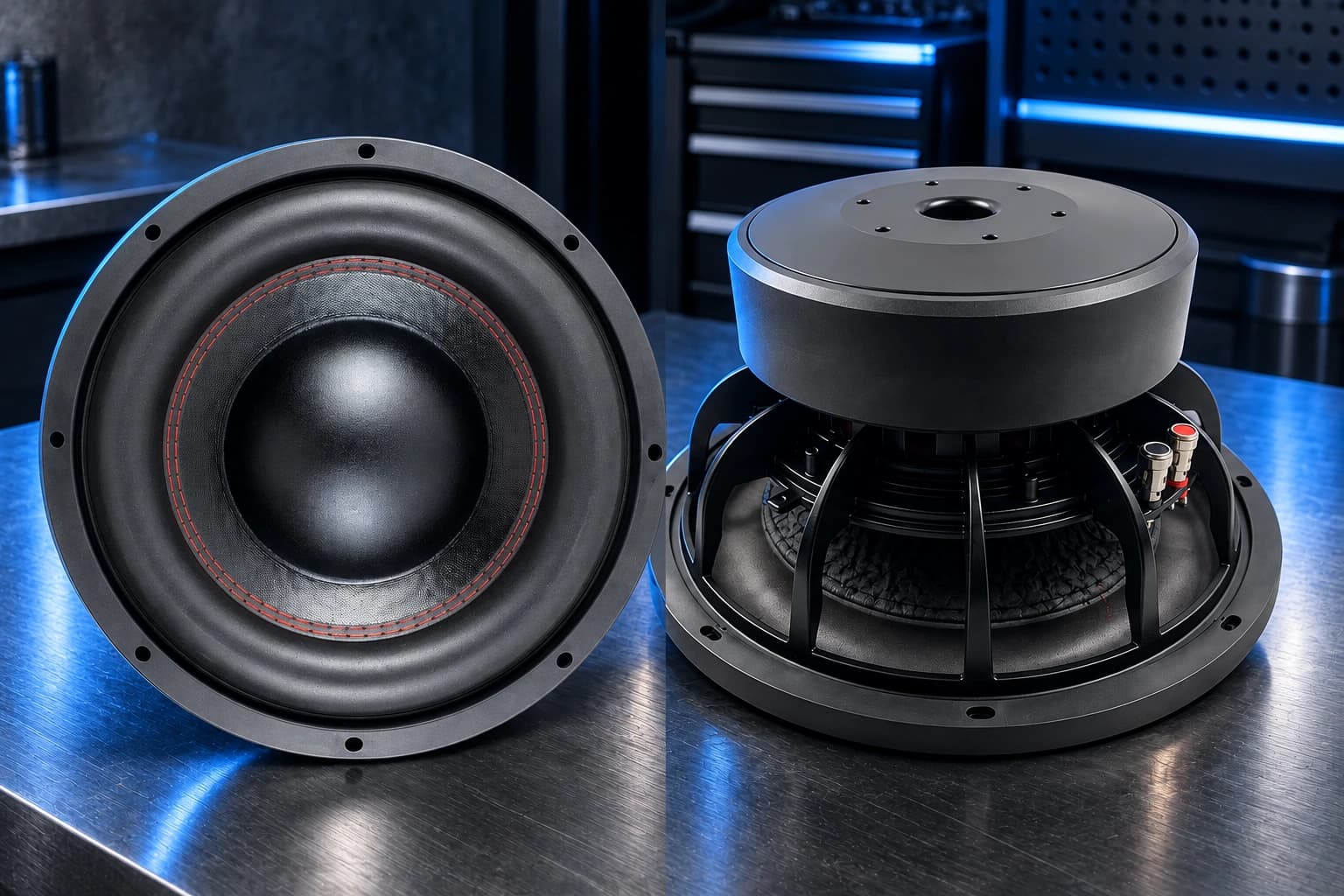

0212 INCH
ZM-CB12P
Passive dual-voice-coil car subwoofer- AES / program
- 1500 W / 3000 W
- Impedance
- 4+4 Ω
- Response
- 40 Hz–1 kHz
- Sensitivity
- 92 dB

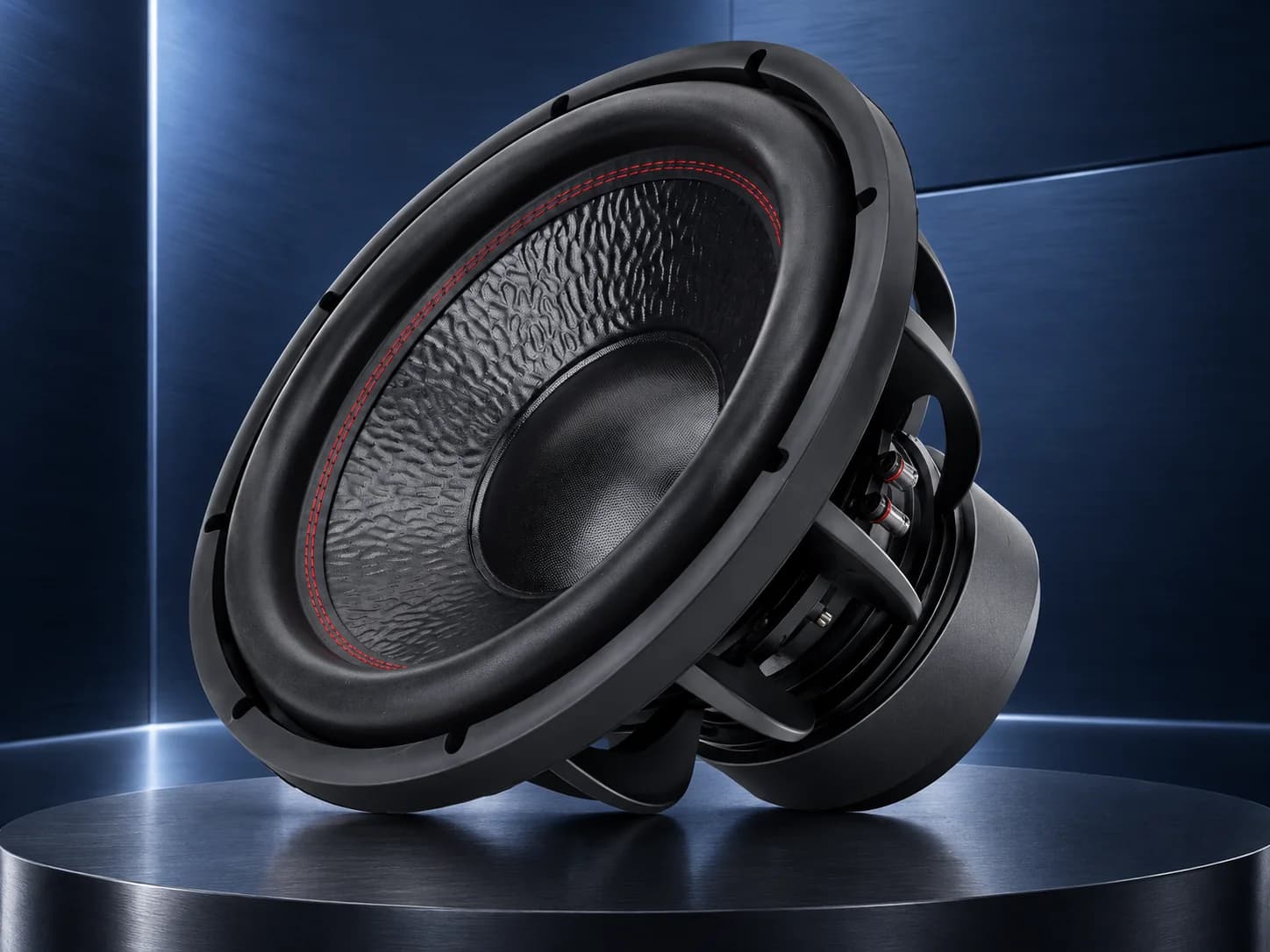

0315 INCH
ZM-CB15P
Passive dual-voice-coil car subwoofer- AES / program
- 2000 W / 4000 W
- Impedance
- 4+4 Ω
- Response
- 40 Hz–1 kHz
- Sensitivity
- 94 dB
VISIBLE ENGINEERING DETAILS
Show Buyers What They Need to Review.
Large, clean close-ups keep the visible construction easy to understand without covering the product with copy.
Paper cone and dust capFoam edge surroundCast aluminium basket75.5 mm copper voice coil

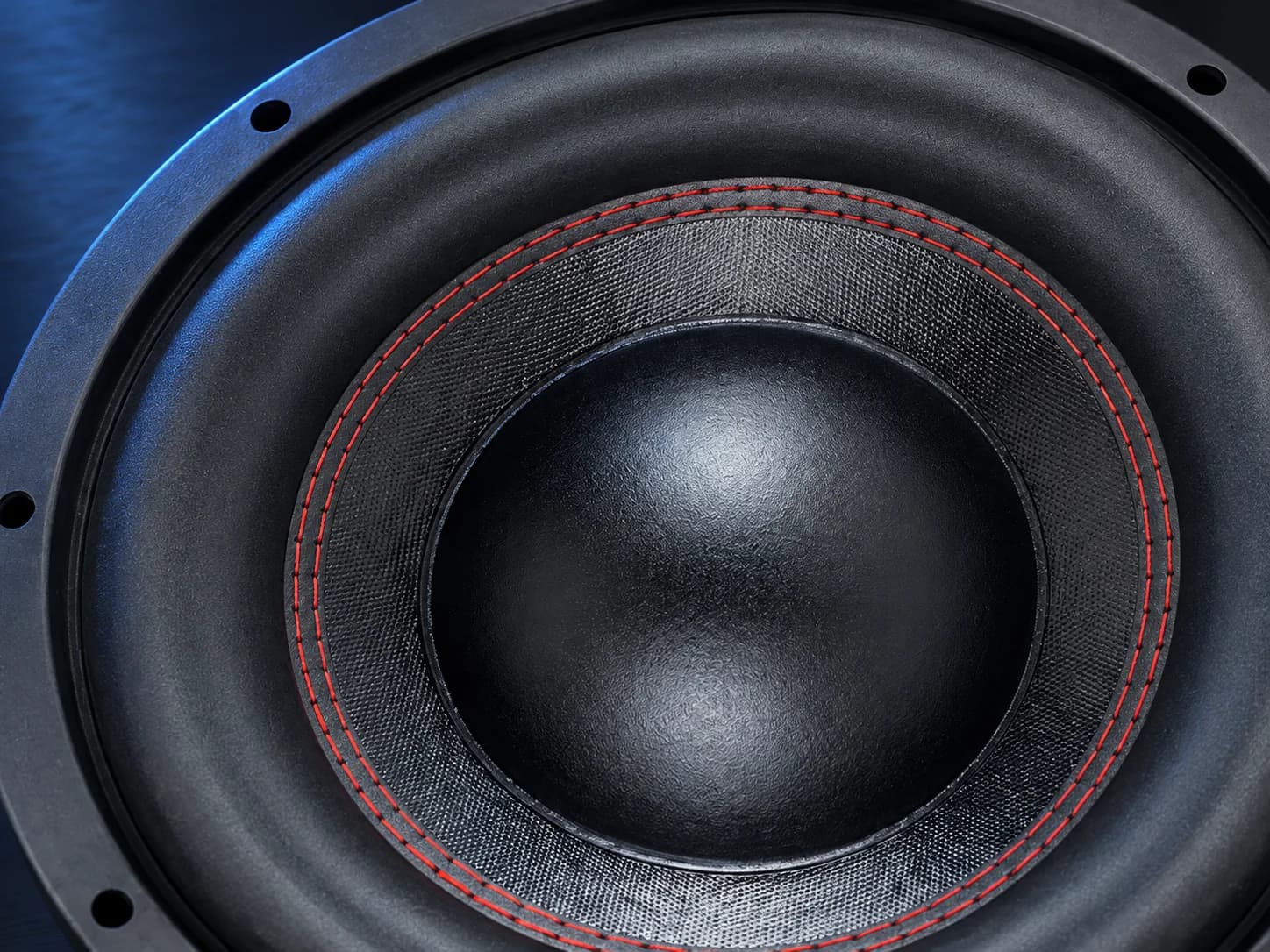

Paper Cone & Dust Cap
A close product view for reviewing the visible cone and dust-cap finish.

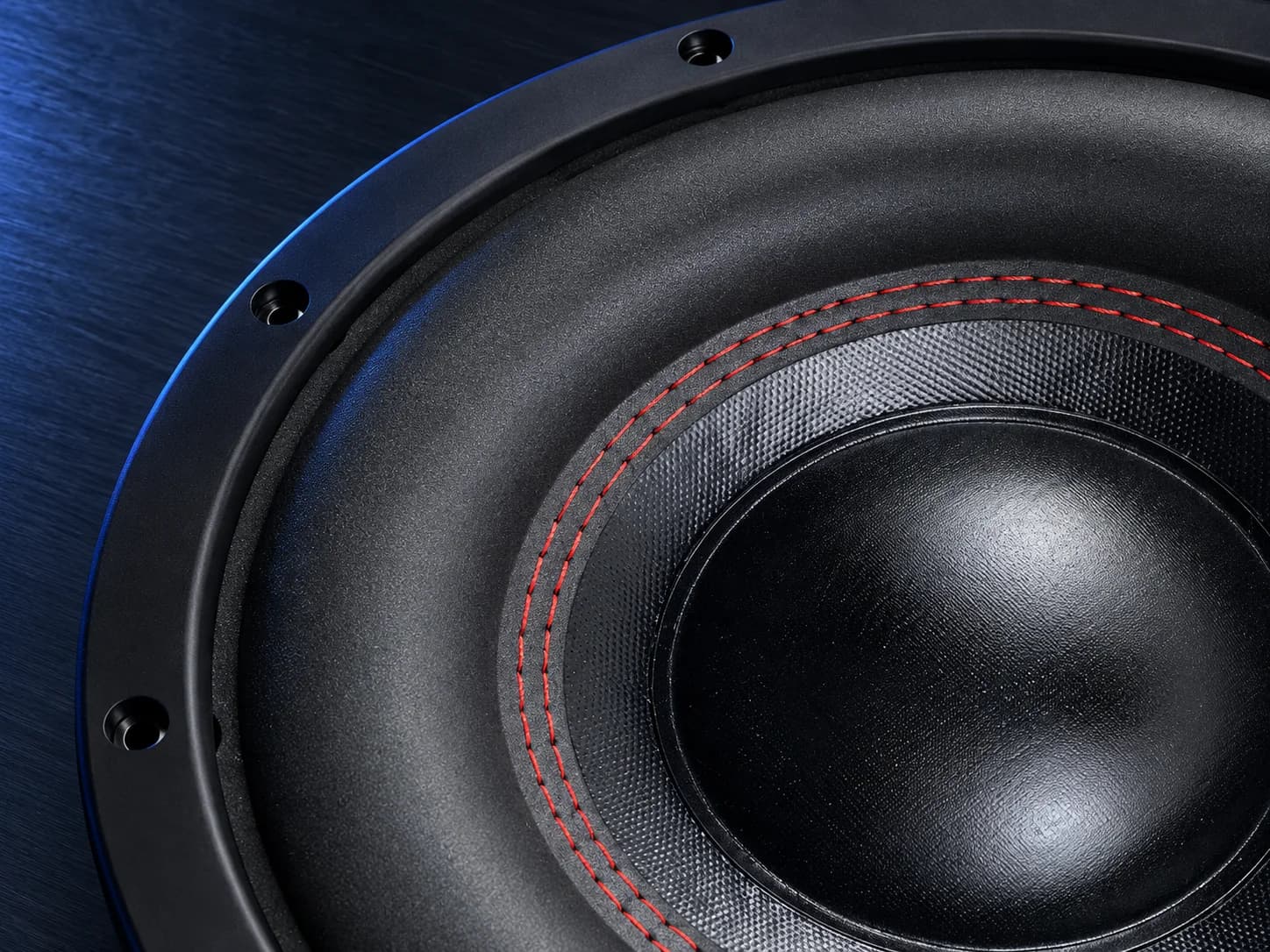

Foam Surround
Tunnel-profile foam surround with the visible red stitching detail.

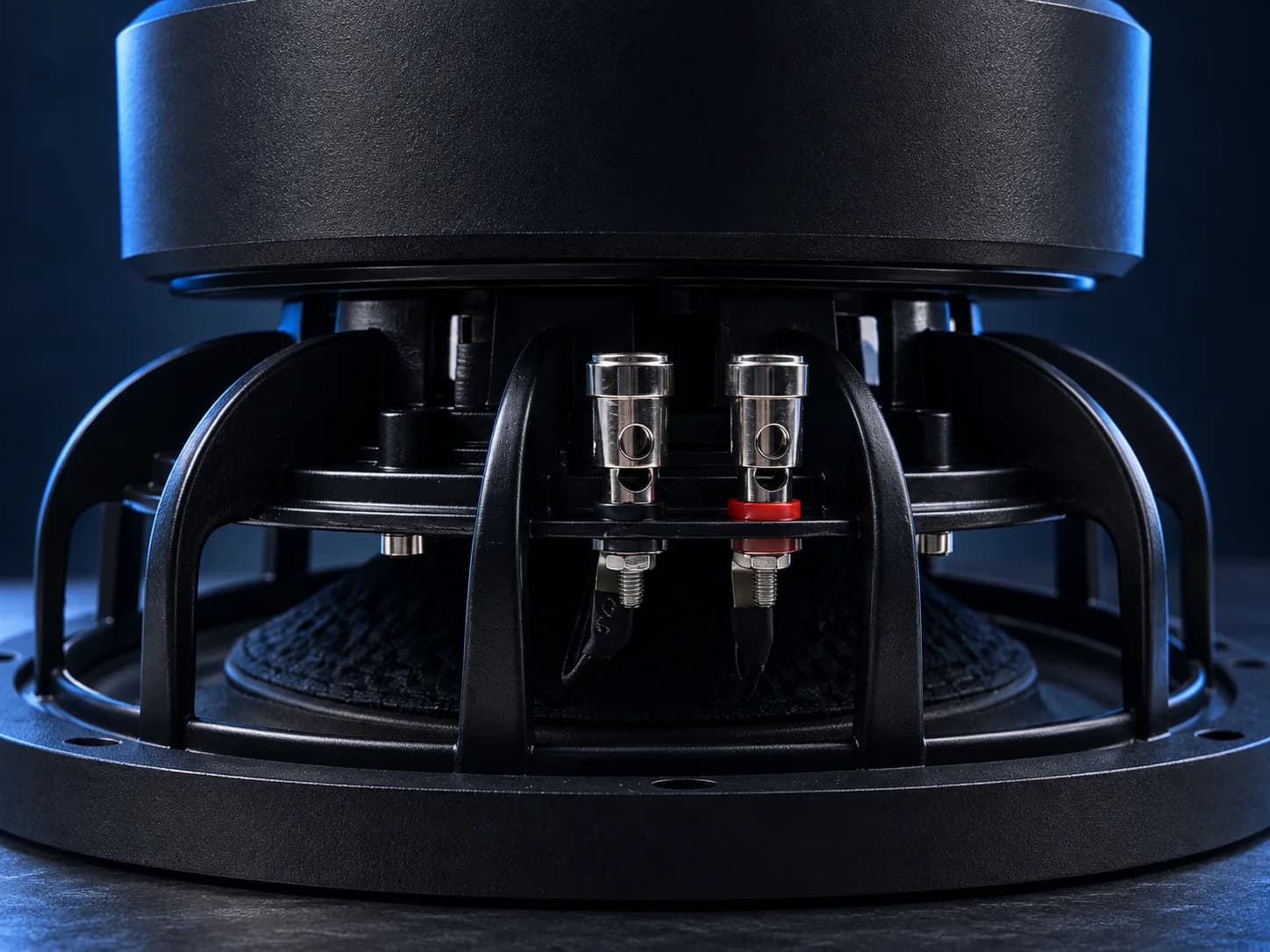

Terminal Area
Clear access to the terminal position for product and assembly review.

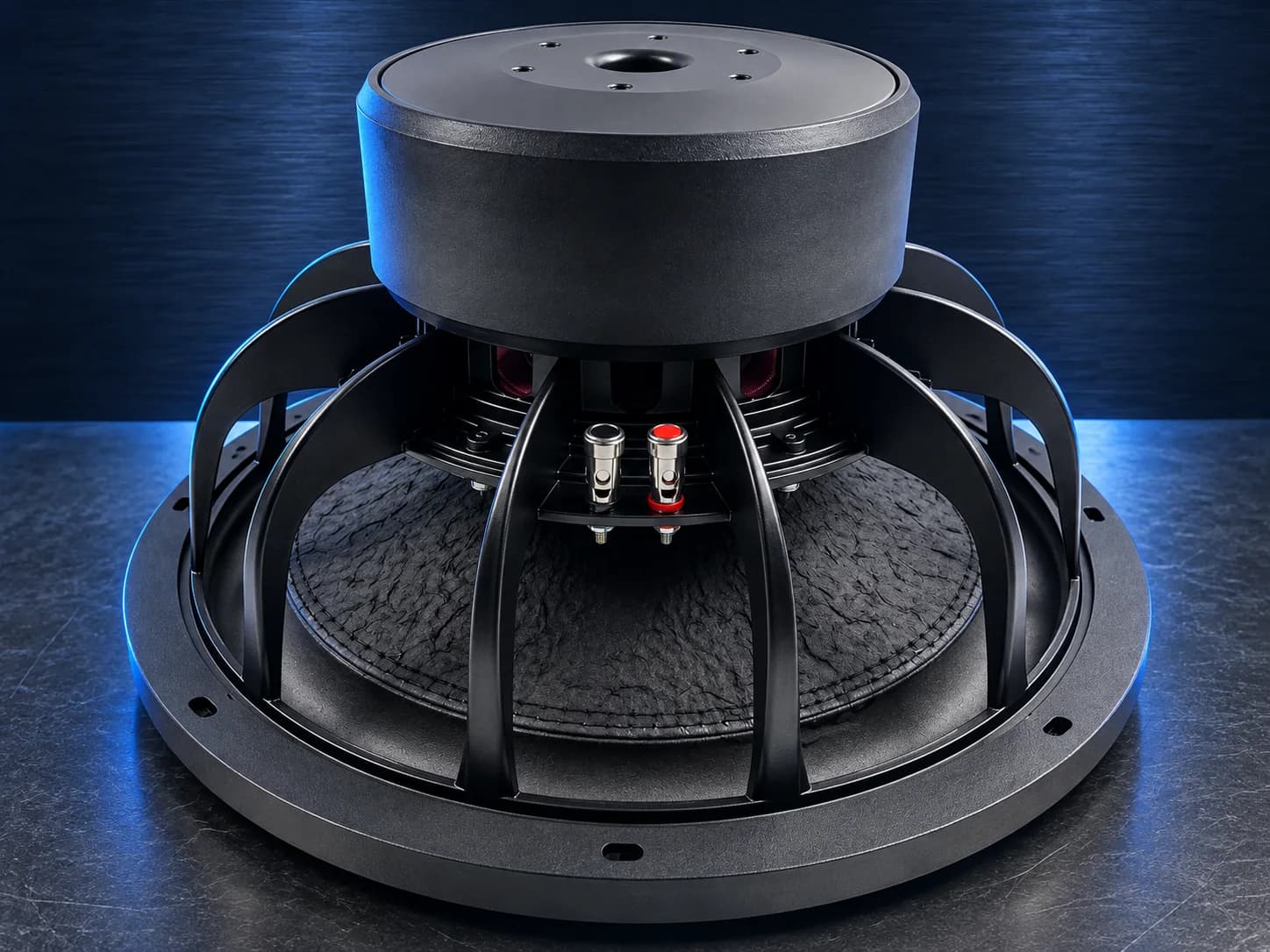

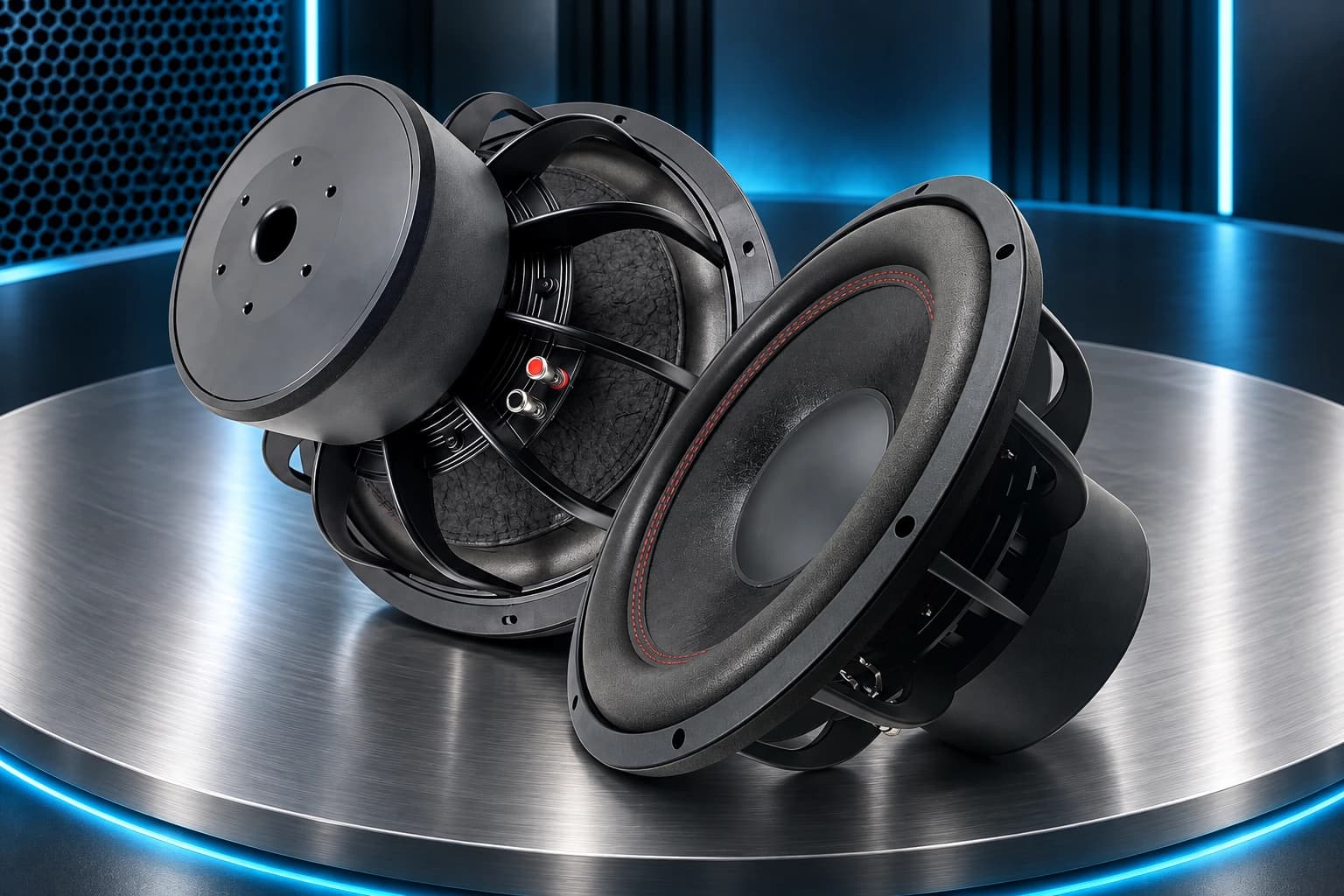

Basket & Magnet Assembly
A genuine ZM-CB15P structure view showing its basket and magnetic assembly.
MODEL COMPARISON
Technical Data That Stays With Its Model.
Reference values reflect the current ZEMING review for this series. Confirm the current approved sheet during quotation.
10 INCH
ZM-CB10P
1500 W AES · 40 Hz–1 kHz · 90 dB
12 INCH
ZM-CB12P
1500 W AES · 40 Hz–1 kHz · 92 dB
15 INCH
ZM-CB15P
2000 W AES · 40 Hz–1 kHz · 94 dBModel referenceZM-CB10P10 INCHZM-CB12P12 INCHZM-CB15P15 INCH
Speaker size10 inch12 inch15 inch
AES power1500 W1500 W2000 W
Program power3000 W3000 W4000 W
Nominal impedance4+4 Ω4+4 Ω4+4 Ω
Frequency response40 Hz–1 kHz40 Hz–1 kHz40 Hz–1 kHz
Sensitivity (1 W / 1 m)90 dB92 dB94 dB
Voice coil75.5 mm copper / ASV75.5 mm copper / ASV75.5 mm copper / ASV
Magnet reference190 × 90 × 20 mm × 2190 × 90 × 20 mm × 2190 mm × 3
Xmax±12.5 mm±12.5 mm±35 mm
Cone / surroundPaper / foam edgePaper / foam edgePaper / foam edge
Model-specific review
Match the selected product with the current approved technical sheet.
OEM / ODM discussion
Review branding, packaging and project requirements with the ZEMING team.
Clear next steps
Move from model selection to sample, quotation and project confirmation.
MANUFACTURING & QUALITY SUPPORT
Clear Quality Review for Every Order.
The visible assembly and terminal condition can be discussed against the selected model. Project-specific inspection criteria are confirmed with the order requirements.
- Model and sample confirmation
- Visible assembly review
- Branding and packaging discussion
B2B SOURCING FAQ
Useful Answers Before You Start.
Share the model, target market and project context so the right information can be reviewed efficiently.
Which sizes are available in the ZM-CB platform?+
The platform includes ZM-CB10P, ZM-CB12P and ZM-CB15P in 10, 12 and 15 inch sizes. Each model keeps its own technical data.
Can the models be supplied for OEM or private-label projects?+
Yes. Share the selected model, target market, branding direction and packaging requirements so the project can be reviewed.
Can I request a sample before placing an order?+
Sample discussions begin with the selected model, required configuration and project background. Availability and terms are confirmed during the quotation process.
How do I receive the current specification sheet?+
Send the model name with your inquiry. The team will provide the current model document used for the project review.
